Project Description

ART FLASH MATRiX

FEATURES
  • Low profile RGB, RGBW Pixel board.
  • Stunning effect of media flash progammable with external software.
  • Syncronized stable operation on proven Art-Net protocol.
  • Audio responsive, automated running with external software.
  • Quick and easy set up in installation and daisy chain wiring.
  • Robust PWM embedded IC providing stable data transmission.
  • Multiple surge arrest circuit ensuring maximum longevity.
  • Expansion of pixels are virtually limitless with additional expansion nodes
  • IP20, IP65
  • Bespoke option for Watt, CCT of White or other characteristics required.

DOCUMENTATION

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC Matrix Board

  • 3) COLOR ………………………………………. RGBW : RGB + W (5000K, 4000K, 3000K

  • 3) Number of pixel ………………………………………. 72

  • 4) Input VOLT(DC) ……………… 12V

  • 5) Product Size(inch/mm) …………. 11.8” x 11.8” / 300 x 300, 11.8” x 5.9″ / 300 x 150, 5.9″ x 5.9″ / 150 x 150

  • 6) Feed receptacle ………….. IM4 , IF4

  • 9) IP Rate ………………………………………………. C0 : IP20, C3 : IP65, C03 : IP65(coated on the board surface)

    • Data Protocol ………………………………. Art-Net, sACN
    • Color Effect …………………………………… 16,777,216
    • Address …………………………………………. Auto addressing
    • Data Protocol ………………………………. Art-Net, sACN
    • Light output ………………………………… Refer to the table
    • Beam Angle …………………………………. 120°
    • Operation Temp(°F/°C) ……………….. Ta : -13~122 / -25~50
    • Expected Life Hours ……………………. 60000 Hrs
    • Fastening Accessory …………………… Screw, Tape(DS)

* Data is subject to change without notice for improvement

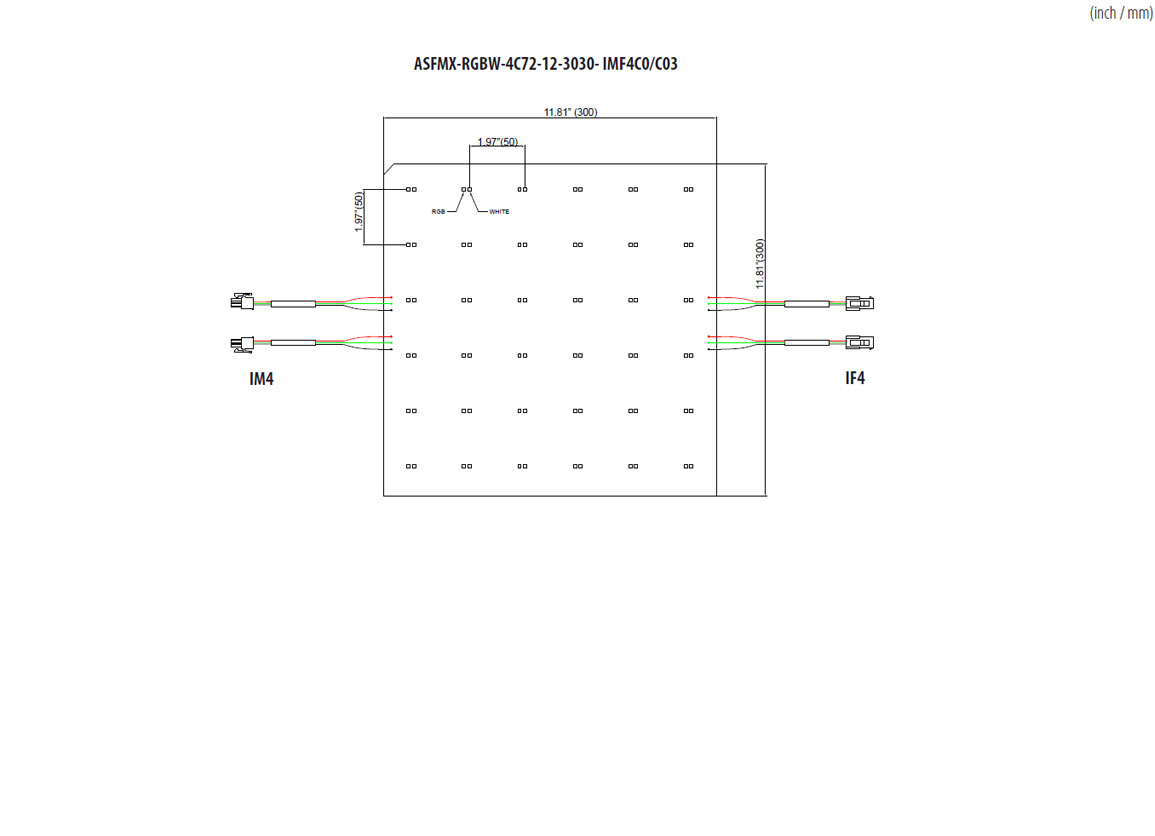

DIMENSTION

* Data is subject to change without notice for improvement

SYSTEM STRUCTURE / WIRING DIAGRAM

* Data is subject to change without notice for improvement
